F-1710-7H 🛑

Previous productF-1701-8

Next productF-1722-4

Picture of F-1710-7H 🛑

Picture of F-1710-7H 🛑

Picture of F-1710-7H 🛑

This bearing is currently not available.

Be the first to review this product

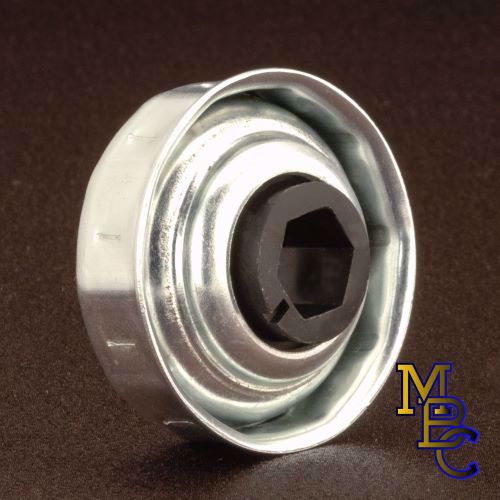

Bearing shown for reference only.

Please see FC-1710-7H bearing as an alternate.

Bearing shown for reference only.

Please see FC-1710-7H bearing as an alternate.

Products specifications

(A) Bearing Body Diameter	1.715" - 1.725"
(A1) Small Diameter on Ribbed Case	1.670"
(B) Bearing Insertion Depth	0.5156" (33/64")
(C) Bore Extension	0.2500" (1/4")
(D) Length through Bore	0.734" (47/64")
(E) Flange Diameter	1.80" (1-51/64")
BORE SIZE	0.451/0.450" (7/16" Hex)
Load Rating	180#
Tube Size / Material (!!REF. ONLY!!)	1.9"O.D. x 12ga (1.682" I.D.)
Weight / 1,000 pcs	225 Lbs (102.05 kg)
