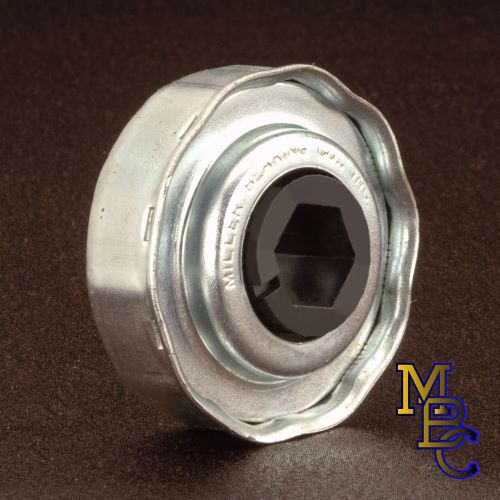

Contains 8- 17/64" Diameter balls and a retainer.

The ball retainer spaces the balls and eliminates contact friction between the balls, allowing higher operating speed, while significantly reducing noise level of the conveyor system.

F designates a plastic insert which acts to quiet the bearing, also allowing it to be re-greased.

The unique rib feature (1912 Series only) is designed to help accommodate the variations in tubing I.D. tolerances.

May be ordered with light oil or grease packed lubricant.

This bearing comes standard with a front felt seal.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

(1912 Series only) added to the end of the part number designates a nylatron seal added to the back of the bearing.

!!~~PLEASE CALL FOR AVAILABILITY~~!!

Contains 8- 17/64" Diameter balls and a retainer.

The ball retainer spaces the balls and eliminates contact friction between the balls, allowing higher operating speed, while significantly reducing noise level of the conveyor system.

F designates a plastic insert which acts to quiet the bearing, also allowing it to be re-greased.

The unique rib feature (1912 Series only) is designed to help accommodate the variations in tubing I.D. tolerances.

May be ordered with light oil or grease packed lubricant.

This bearing comes standard with a front felt seal.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

(1912 Series only) added to the end of the part number designates a nylatron seal added to the back of the bearing.

!!~~PLEASE CALL FOR AVAILABILITY~~!!

Products specifications
(A) Bearing Body Diameter 1.775" - 1.785"
(B) Bearing Insertion Depth 0.5469" (35/64")
(C) Bore Extension 0.2188" (7/32")
(D) Length through Bore 0.766" (49/64")
(E) Flange Diameter 1.91" (1-29/32")
Load Rating 428#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 16ga (1.770"I.D.)
Weight / 1,000 pcs 256.25 Lbs (116.23 kg)
