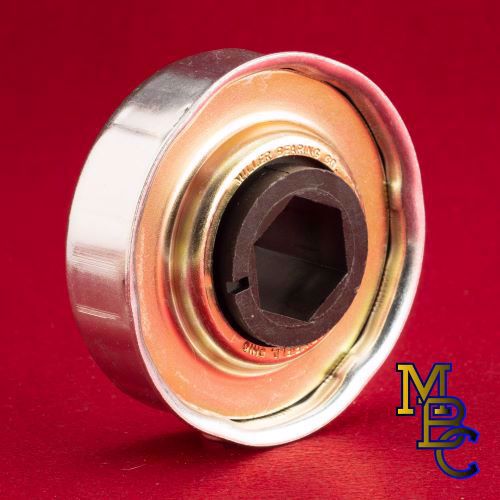

Contains 9- 5/16" Diameter balls and a retainer.

The ball retainer spaces the balls and eliminates contact friction between the balls, allowing higher operating speed while significantly reducing the noise level of the conveyor system.

F designates a plastic insert which acts to quiet the bearing, also allowing it to be re-greased.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

May be ordered with light oil or grease packed lubricant.

SP Comes standard with a felt seal added to the front and a nylatron seal added to the back of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Contains 9- 5/16" Diameter balls and a retainer.

The ball retainer spaces the balls and eliminates contact friction between the balls, allowing higher operating speed while significantly reducing the noise level of the conveyor system.

F designates a plastic insert which acts to quiet the bearing, also allowing it to be re-greased.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

May be ordered with light oil or grease packed lubricant.

SP Comes standard with a felt seal added to the front and a nylatron seal added to the back of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Products specifications
(A) Bearing Body Diameter 2.280" - 2.290"
(A1) Small Diameter on Ribbed Case 2.250"
(B) Bearing Insertion Depth 0.7188" (23/32")
(C) Bore Extension 0.2188" (7/32")
(D) Length through Bore 0.937" (15/16")
(E) Flange Diameter 2.44" (2-7/16")
Load Rating 620#
BORE SIZE 0.703/0.698" (11/16" Hex)
Tube Size / Material (!!REF. ONLY!!) 2-1/2"O.D. x 11ga (2.260" I.D.)
Weight / 1,000 pcs 543.75 Lbs (246.64 kg)
