Contains 8- 17/64" Diameter balls and a ball retainer for higher speed applications.

Contains a plastic insert which acts to quiet the bearing, also allowing it to be re-greased.

May be ordered with light oil or grease packed lubricant.

added to end of the part number designates a felt seal added to the front of the bearing.

T added to the end of part number designates of Teflon seal added to the front of the bearing.

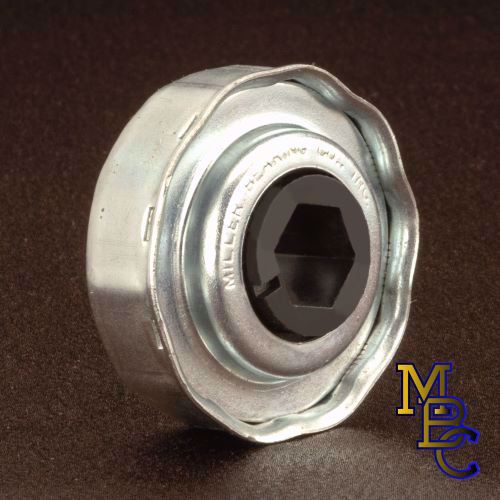

!!~~BEARING SHOWN FOR REFERENCE ONLY~~!!

USE FR-1775-7HDS or PFR-1775-7HDS AS AN ALTERNATE

Contains 8- 17/64" Diameter balls and a ball retainer for higher speed applications.

Contains a plastic insert which acts to quiet the bearing, also allowing it to be re-greased.

May be ordered with light oil or grease packed lubricant.

added to end of the part number designates a felt seal added to the front of the bearing.

T added to the end of part number designates of Teflon seal added to the front of the bearing.

!!~~BEARING SHOWN FOR REFERENCE ONLY~~!!

USE FR-1775-7HDS or PFR-1775-7HDS AS AN ALTERNATE

Products specifications
(A) Bearing Body Diameter 1.775" - 1.785"
(B) Bearing Insertion Depth 0.5469" (35/64")
(C) Bore Extension 0.2188" (7/32")
(D) Length through Bore 0.766" (49/64")
(E) Flange Diameter 1.91" (1-29/32")
Load Rating 304#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 16ga (1.770"I.D.)
Weight / 1,000 pcs 200 Lbs (90.71 kg)
