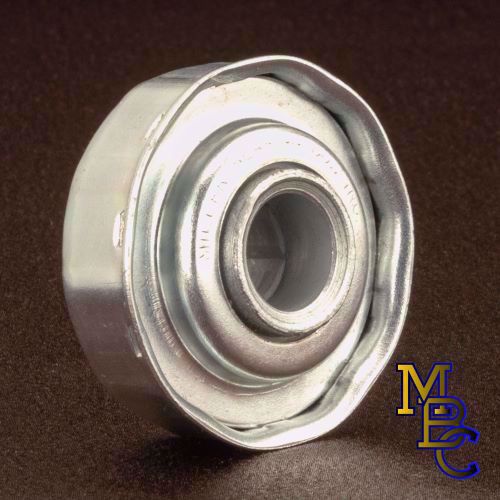

MFC-1710-7H

Contains 13-17/64" Diameter balls.

The unique rib feature (1710 Series only) is designed to help accommodate the variations in tubing I.D. tolerances.

May be ordered with light oil or grease packed lubricant.

S added to end of the part number designates a felt seal added to the front of the bearing.

T added to the end of part number designates of Teflon seal added to the front of the bearing.

Contains 13-17/64" Diameter balls.

The unique rib feature (1710 Series only) is designed to help accommodate the variations in tubing I.D. tolerances.

May be ordered with light oil or grease packed lubricant.

S added to end of the part number designates a felt seal added to the front of the bearing.

T added to the end of part number designates of Teflon seal added to the front of the bearing.

Products specifications

(A) Bearing Body Diameter	1.715" - 1.725"
(A1) Small Diameter on Ribbed Case	1.670"
(B) Bearing Insertion Depth	0.5156" (33/64")
(C) Bore Extension	0.2500" (1/4")
(D) Length through Bore	0.734" (47/64")
(E) Flange Diameter	1.80" (1-51/64")
Load Rating	252#
BORE SIZE	0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!)	1.9"O.D. x 12ga (1.682" I.D.)
Weight / 1,000 pcs	212.5 Lbs (96.38 kg)
