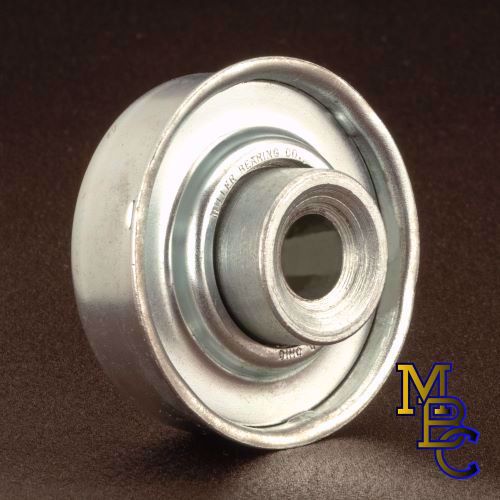

Contains 13- 3/8" Diameter balls.

MFC designates an all metal inner race.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

S added to the end of the part number designates a felt seal added to the front of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Also available with a non-ribbed case which has a 2.265 A dimension. Substitute 2280 with 2265 in the part number to specify this feature.

Contains 13- 3/8" Diameter balls.

MFC designates an all metal inner race.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

S added to the end of the part number designates a felt seal added to the front of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Also available with a non-ribbed case which has a 2.265 A dimension. Substitute 2280 with 2265 in the part number to specify this feature.

Products specifications
(A) Bearing Body Diameter 2.280"
(A1) Small Diameter on Ribbed Case 2.250"
(B) Bearing Insertion Depth 0.7188" (23/32")
(C) Bore Extension 0.4688" (15/32")
(D) Length through Bore 1.187" (1-3/16")
(E) Flange Diameter 2.44" (2-7/16")
Load Rating 425#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material 2-1/2"O.D. x 11ga (2.260" I.D.)
Weight / 1,000 pcs 587.5 Lbs
