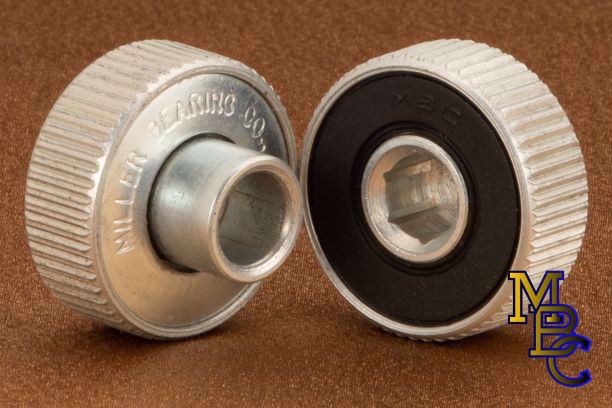

R-1125-5HDS 3/4" EXT
Previous product
R-1125-5HDS
Next product
R-2250-8
Home
/
All Bearings
/
R-1125-5HDS 3/4" EXT
RESOURCES
TEMPERATURE RATINGS
HEX BORE MEASURING GUIDE
Be the first to review this product
Specifications
Contact Us
Products specifications
(A) Bearing Body Diameter
1.125" - 1.135"
(B) Bearing Insertion Depth
0.4063" (13/32")
(C) Bore Extension
1.0313" (1-1/32")
(D) Length through Bore
1.750" (1-3/4")
(E) Flange Diameter
No Flange
BORE SIZE
0.322/0.317" (5/16" Hex)
Load Rating
276#
Weight / 1,000 pcs
81.25 Lbs (36.85 kg)
Products specifications
(A) Bearing Body Diameter
1.125" - 1.135"
(B) Bearing Insertion Depth
0.4063" (13/32")
(C) Bore Extension
1.0313" (1-1/32")
(D) Length through Bore
1.750" (1-3/4")
(E) Flange Diameter
No Flange
BORE SIZE
0.322/0.317" (5/16" Hex)
Load Rating
276#
Weight / 1,000 pcs
81.25 Lbs (36.85 kg)
