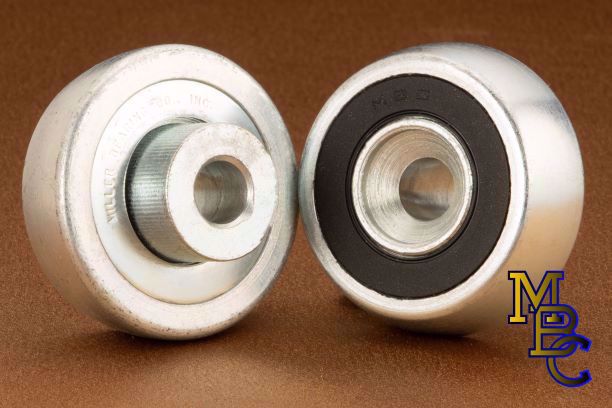

Contains 9- 5/16" Diameter balls and a nylon retainer.

May be ordered dry, with light oil or grease packed lubricant.

These bearings come standard with a nitrile seal added to each side of the bearing.

Contains 9- 5/16" Diameter balls and a nylon retainer.

May be ordered dry, with light oil or grease packed lubricant.

These bearings come standard with a nitrile seal added to each side of the bearing.

Products specifications
(A) Bearing Body Diameter 2.375" - 2.385"
(B) Bearing Insertion Depth 0.7813" (25/32")
(C) Bore Extension 0.5313" (17/32")
(D) Length through Bore 1.328" (1-21/64")
(E) Flange Diameter 1.906 (Radius)
Load Rating 1050#
BORE SIZE 0.505/0.501" (1/2" Round)
Weight / 1,000 pcs 700 Lbs (317.51 kg)
