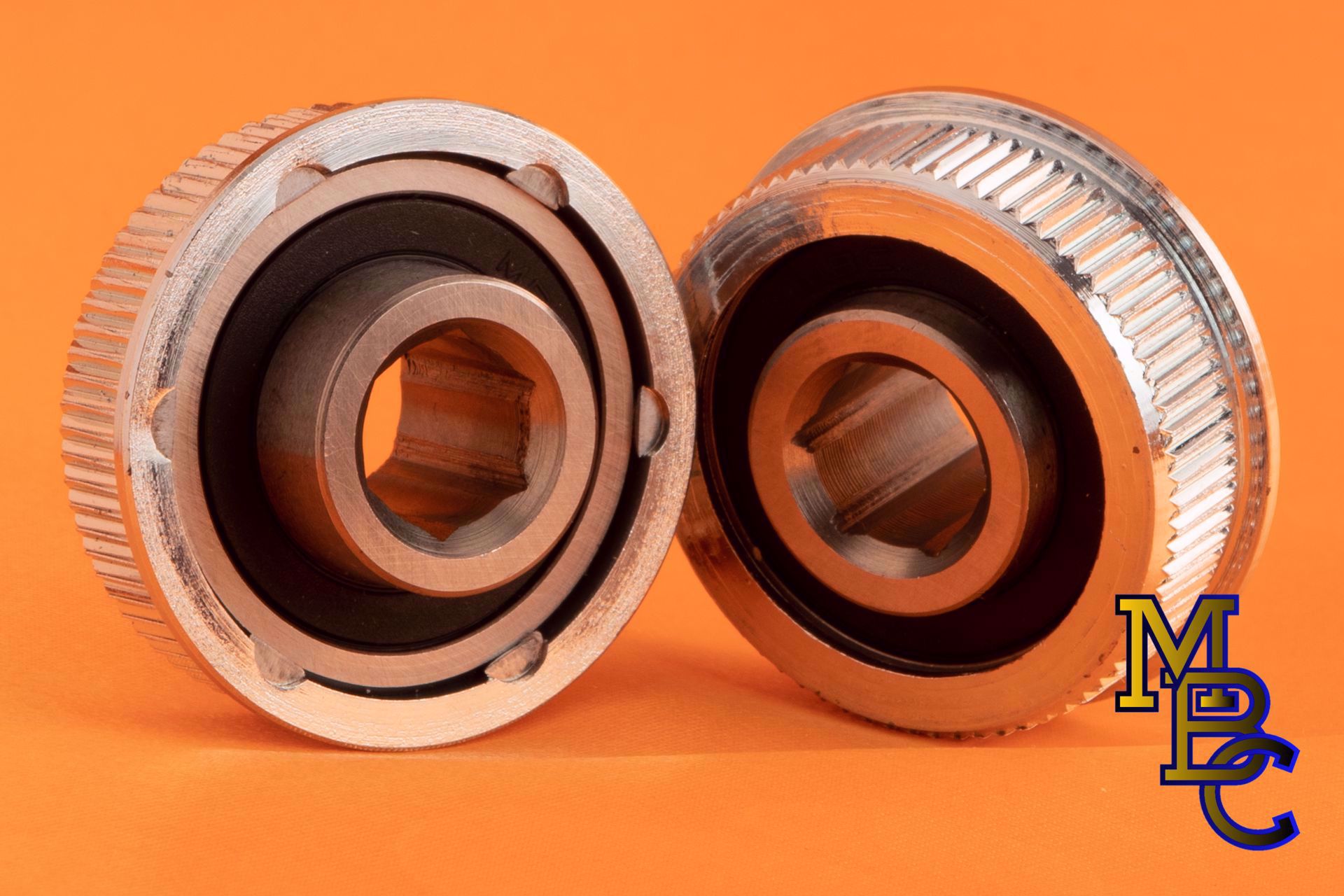

PFR-1498-7HDS

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

Products specifications

(A) Bearing Body Diameter	1.498" - 1.508"
(B) Bearing Insertion Depth	0.500" (1/2")
(C) Bore Extension	0.2813" (9/32")
(D) Length through Bore	0.781" (25/32")
(E) Flange Diameter	1.61" (1-39/64")
BORE SIZE	0.451/0.450" (7/16" Hex)
Load Rating	1250#
Tube Size / Material (!!REF. ONLY!!)	1-5/8"O.D. x 16ga (1.495" I.D.)
Weight / 1,000 pcs	175 Lbs (79.37 kg)
